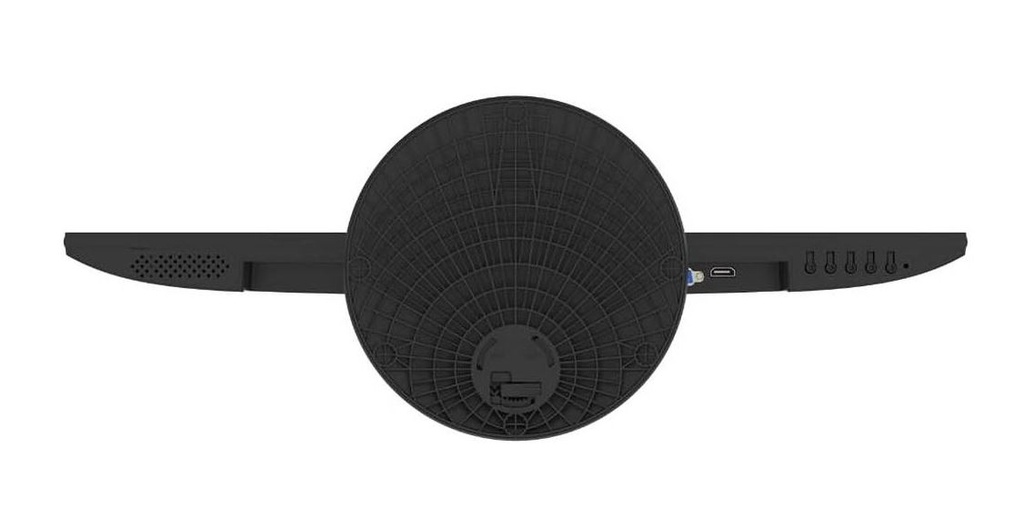

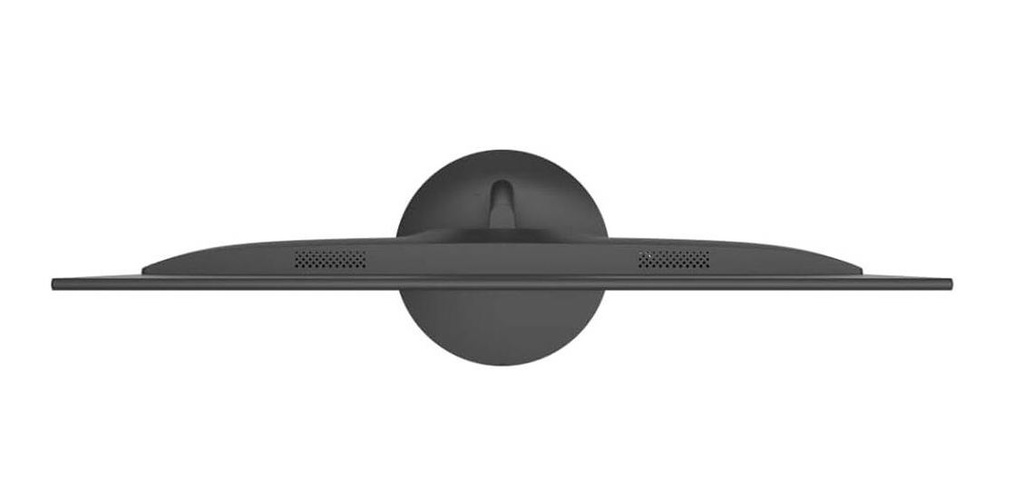

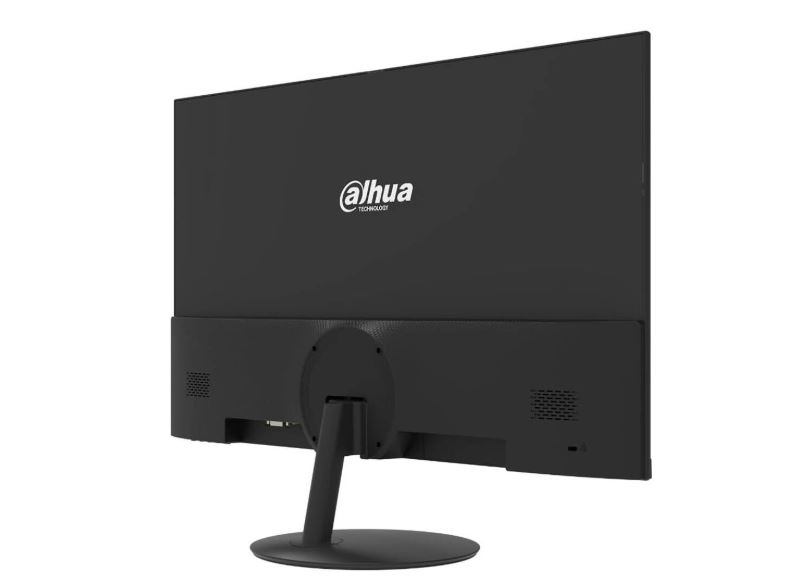

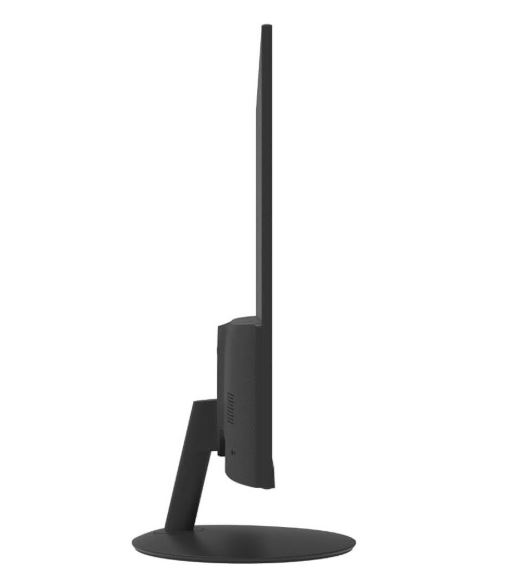

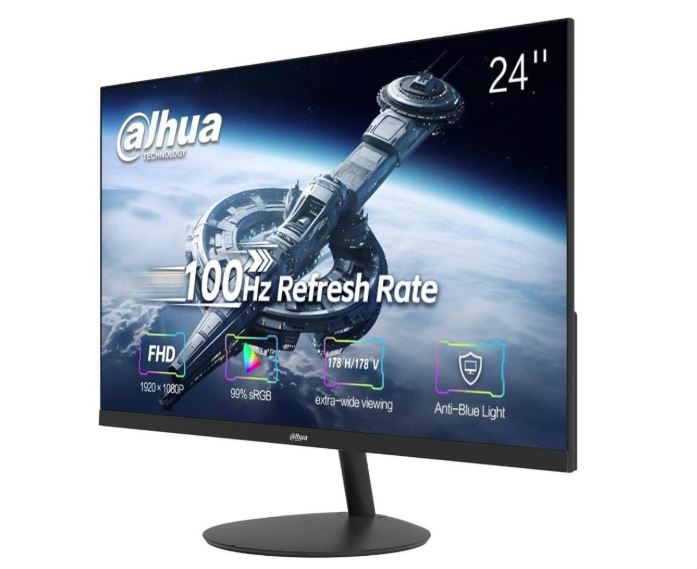

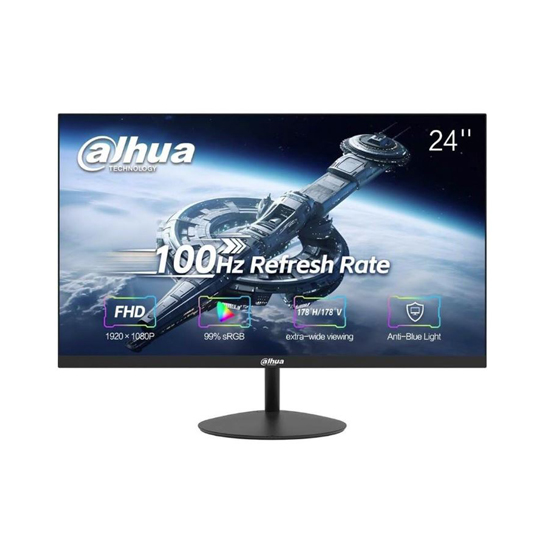

Dahua 23.8" Inch FHD Monitor, HDMI & VGA (DHI–LM24–A200Y)
Dahua 23.8 inch FHD Monitor - Ultra-narrow bezel , elegant appearance, plastic base - High fidelity digital processing for a brilliant and vivid video - Support multiple signal inputs such as HDMI, VGA - 100Hz high refresh rate, eliminates picture lagging.
Dahua
✔️✔️Enjoy hassle-free returns with this offer ✔️✔️
Manufacturer Part Number :
DHI–LM24–A200Y
100% original guarantee
Free delivery on all orders
Dahua 23.8 inch FHD Monitor
> Ultra-narrow bezel , elegant appearance, plastic base;
> 178°H/178°V extra-wide viewing angle for overall viewing performance;
> High fidelity digital processing for a brilliant and vivid video;
> Support multiple signal inputs such as HDMI, VGA;
> 100Hz high refresh rate, eliminates picture lagging;
- Specifications
Display | |
Model | DHI-LM24-A200Y |
LCD Technology | VA |
Backlight | ELED |
Screen Size | 23.8 inch |
Aspect Ratio | 16:9 |
Viewing Size | 527.04 (H) × 296.46 (V) mm |
Viewing Angle | 178° (H) / 178° (V) |
Display Mode | Horizontal |
Pixel Pitch | 0.2745 mm × 0.2745 mm |
Pixels Per Inch | 92.55 |
Resolution | 1920 (H) × 1080 (V) |
Refresh Rate | 100 Hz |
Display Color | 8 bit |
Color Gamut | 72%NTCS (typ.) |
Brightness | 250 cd/m² |
Contrast Ratio | 3000:1 |
Response Time | 10 ms |
Lifespan | 30,000 hrs |
Surface Treatment | Haze 25% |
Device Ports | |
Input Port | 1 × VGA (1080p@60 Hz), 1 × HDMI 1.4 (1080p@100 Hz) |
Power & Environmental Conditions | |
Power Supply | 12 VDC, 2.5 A |
Power Type | External power adapter |
Power Consumption | 13 W (basic), 16 W (typ.), 16 W (max) |
Standby Power Consumption | <0.5 W |
Operating Temperature | 0 °C to +40 °C (+32 °F to +104 °F) |
Operating Humidity | 10%–90% (RH) |
Storage Temperature | –20 °C to +60 °C (–4 °F to +140 °F) |
Storage Humidity | 5%–90% (RH) |
General | |
Inclined Angle | -5°±2°/15°±2° |
Product Dimensions | 539.2 mm × 320.4 mm × 41.3 mm (21.229" × 12.616" × 1.624") (W × H × D) without wall-mount bracket |
Package Size | 612 mm × 405 mm × 101 mm (24.094" × 15.945" × 3.976") (W × H × D) |
Unilateral Splicing | U/L/R/D: 3.1 mm/3.1 mm/3.1 mm/15.8 mm |
Net Weight | 2.79 kg (6.15 lb) |
Gross Weight | 3.75 kg (8.26 lb) |
Casing Color | Black |
Control Mode | Five-button |
Wall Mount VESA | 75 mm × 75 mm (2.95" × 2.95") |
Accessory | Power adapter, base, HDMI cable, user's manual (QR code),legal and regulatory information, etc. |
Optional Accessory | Wall mount |
Certification | |
Certifications | CE EMC, CE LVD, CE ERP |
| Brand | Dahua |
| Display type | Full HD |
| Screen Size | 23.8" |
| Resolution | 1920x1080 |
| HDMI Port | Yes |
| Warranty | 2 Years |
