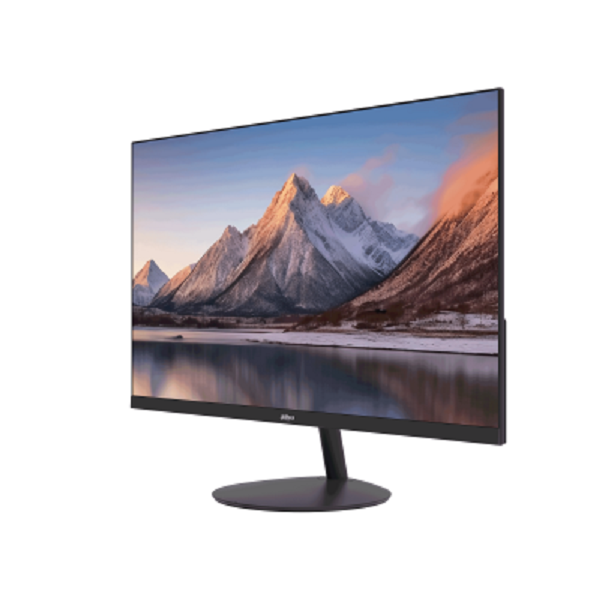

Dahua 23.8" Inch FHD HDMI & VGA 2 SPEAR Monitor (DHI-LM24-A200YS)
LM24-A200 24'' FHD Monitor, Light and cost-effective plastic housing, Ultra-narrow bezel, elegant appearance, metal base, Anti-blue light design, eye-protective, Support multiple signal inputs including HDMI and VGA.
Dahua
✔️✔️Enjoy hassle-free returns with this offer ✔️✔️
Manufacturer Part Number :
DHI-LM24-A200YS
100% original guarantee
Free delivery on all orders
DAHUA MONITOR DHI-LM24-A200Y: A Comprehensive Technical Overview
The Dahua DHI-LM24-A200Y is a high-performance 24-inch Full HD monitor designed for professional and personal use. With its sleek design, advanced features, and reliable performance, this monitor offers an exceptional viewing experience.
Key Features:
- Crystal-Clear Visuals: The 1920 x 1080 resolution delivers sharp, detailed images, perfect for work, entertainment, and gaming.
- Immersive Viewing: The VA panel technology ensures wide viewing angles (178°H/178°V), allowing you to enjoy consistent image quality from any position.
- Smooth Performance: The 100Hz refresh rate minimizes motion blur and provides a seamless viewing experience, especially during fast-paced action scenes.
- Sleek Design: The ultra-narrow bezel design creates a modern and minimalist look, ideal for multi-monitor setups.
- Eye-Friendly Technology: Anti-blue light technology reduces harmful blue light emissions, protecting your eyes during extended viewing sessions.
- Versatile Connectivity: HDMI and VGA inputs offer compatibility with a wide range of devices, including PCs, laptops, gaming consoles, and more.
- Ergonomic Design: The monitor can be tilted from -5° to 15° to optimize viewing angles and reduce eye strain.
- Wall-Mountable: VESA 100x100mm compatibility allows for flexible mounting options.
- Durable and Lightweight: The lightweight design and durable construction ensure long-lasting performance.
- Energy Efficient: Low power consumption contributes to reduced energy costs and environmental impact.
Technical Specifications:
- Screen Size: 24 inches
- Panel Type: VA
- Resolution: 1920 x 1080 (Full HD)
- Brightness: 220 cd/㎡
- Contrast Ratio: 3000:1
- Viewing Angle: 178° (H)/178° (V)
- Response Time: 5ms (typical)
- Refresh Rate: 100Hz
- Inputs: HDMI, VGA
- Power Consumption: 25W (standard), ≤0.5W (standby)
- Dimensions (without stand): 542 x 321.3 x 55.3 mm
- Weight: 2.79 kg
The Dahua DHI-LM24-A200Y is an excellent choice for users who demand high-quality visuals, ergonomic comfort, and reliable performance. Whether you're working on demanding tasks, enjoying multimedia content, or gaming, this monitor delivers an exceptional experience.
Display | |
Model | DHI-LM24-A200Y |
LCD Technology | VA |
Backlight | ELED |
Screen Size | 23.8 inch |
Aspect Ratio | 16:9 |
Resolution | 1920 (H) × 1080 (V) |
Refresh Rate | 100 Hz |
Display Color | 8 Bit |
Color Gamut | 72% NTSC |
Brightness | 250 cd/m² |
Contrast Ratio | 3000:1 |
Viewing Angle | 178° (H) / 178° (V) |
Display Mode | Horizontal |
Response Time | 10 ms |
Lifespan | 30,000 hrs |
Surface Treatment | Haze 25% |
Device Ports | |
Input Port | 1 × VGA (1080P@60 Hz),1 × HDMI 1.4 (1080P@100 Hz) |
Power & Environmental Conditions | |
Power Supply | 12 VDC, 2.5 A |
Power Type | power adapter |
Power Consumption | 13 W (basic), 16 W (typ.), 16 W (max) |
Standby Power Consumption | ≤0.5 W |
Operating Temperature | 0 °C to +40 °C (+32 °F to +104 °F) |
Operating Humidity | 10%–90% (RH) |
Storage Temperature | –20 °C to +60 °C (–4 °F to +140 °F) |
Storage Humidity | 5%–90% (RH) |
General | |
Inclined Angle | -5°±2°/15°±2° |
Product Dimensions | 539.2 mm × 320.4 mm × 41.3 mm (21.229 » × 12.616 » × 1.624 ») (W × H × D) without base |
Package Size | 612 mm × 405 mm × 101 mm (24.094 » × 15.945 » × 3.976 ») (W × H × D) |
Frame Width | U/L/R/D：3.1 mm/3.1 mm/3.1 mm/15.8 mm |
Net Weight | 2.79 kg (6.15 lb) |
Gross Weight | 3.75 kg (8.26 lb) |
Accessory | Power adapter, base, HDMI cable, user’s manual (QR code), legal and regulatoryinformation, etc. |
Optional Accessory | Wall mount |
Wall Mount VESA | 75 mm × 75 mm (2.95″ × 2.95″) |
| Brand | Dahua |
| Screen Size | 23.8" |
| Resolution | 1920x1080 |
| HDMI Port | Yes |
| Warranty | 2 Years |
